Cuttin’ Up: LightCarbon.com’s LCG-010-D Gravel Frame

Ayyyee. You might have traveled here from this video below. I have posted the high-resolution photos below for your inspection.

If you’re in the DFW area and offer NDT services please send me an email: ndt@andrewgrabbs.com

LightCarbon.com LCG-010-D Gravel Frame Specifications

FrameLightcarbon addict best carbon gravel bike frame
MaterialHigh modulus Toray T700  carbon fiber
Size58 (cm)
ForkLightcarbon specify carbon fork
HeadtubeTapered 1 1/8”- 1 1/2” head tube(upper 42mm lower 52mm)
WeightFrame 1060g/fork 460g/seat post 183g/Medium size
Seatpost27.2mm diameter round
Bottom bracketBB86
Max tire clearance700*41C or 650B*1.9”
Max Chainring Max 54T- Small 34T
Brake mount typeShimano flat mount disc brake
Dropout Front 12*100mm TA Rear 12*142mm TA
GroupsetMachanical and Di2 compatible
Test StandardISO4210
Warranty2 years

LightCarbon LCG-010-D Gravel Frame Cost

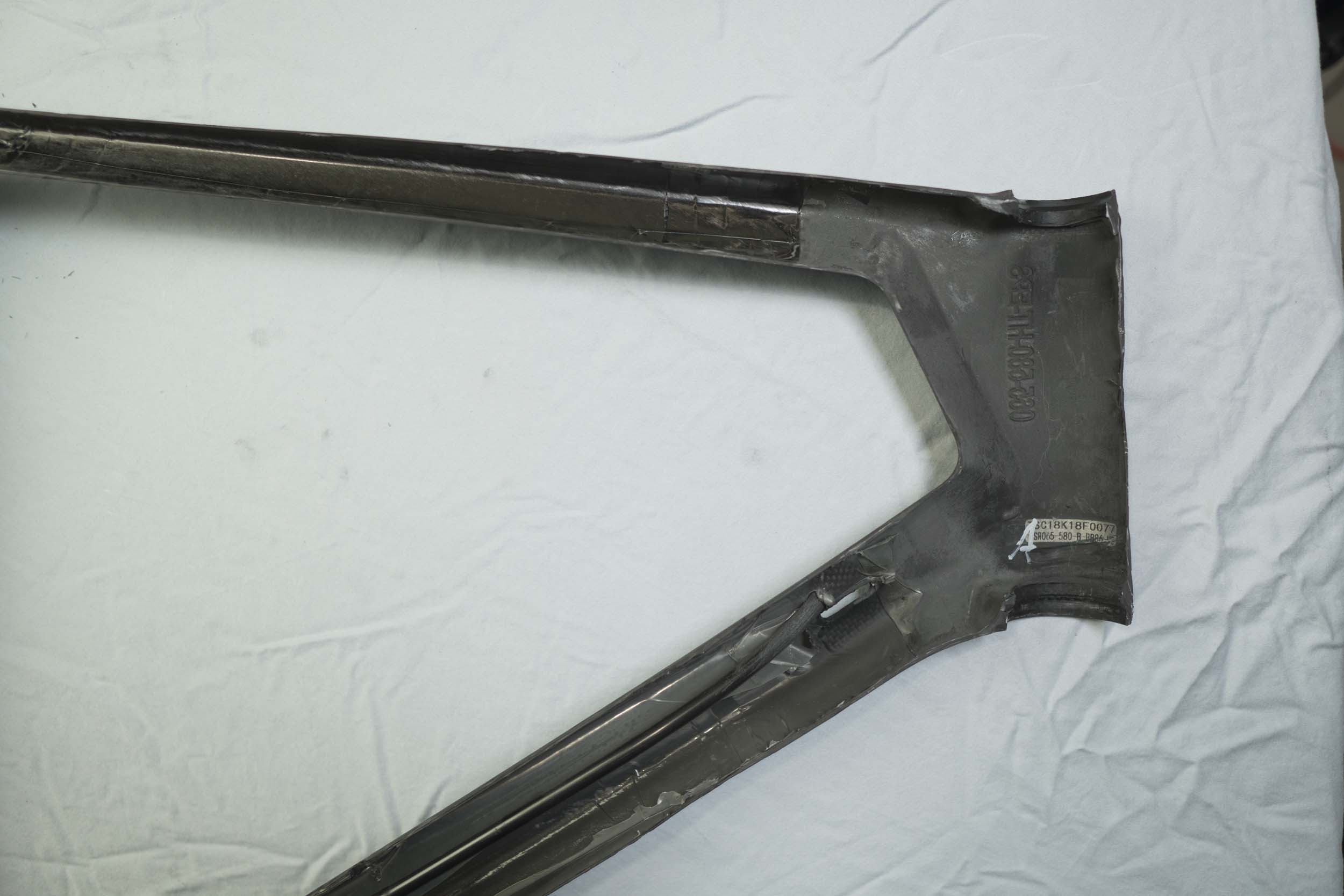

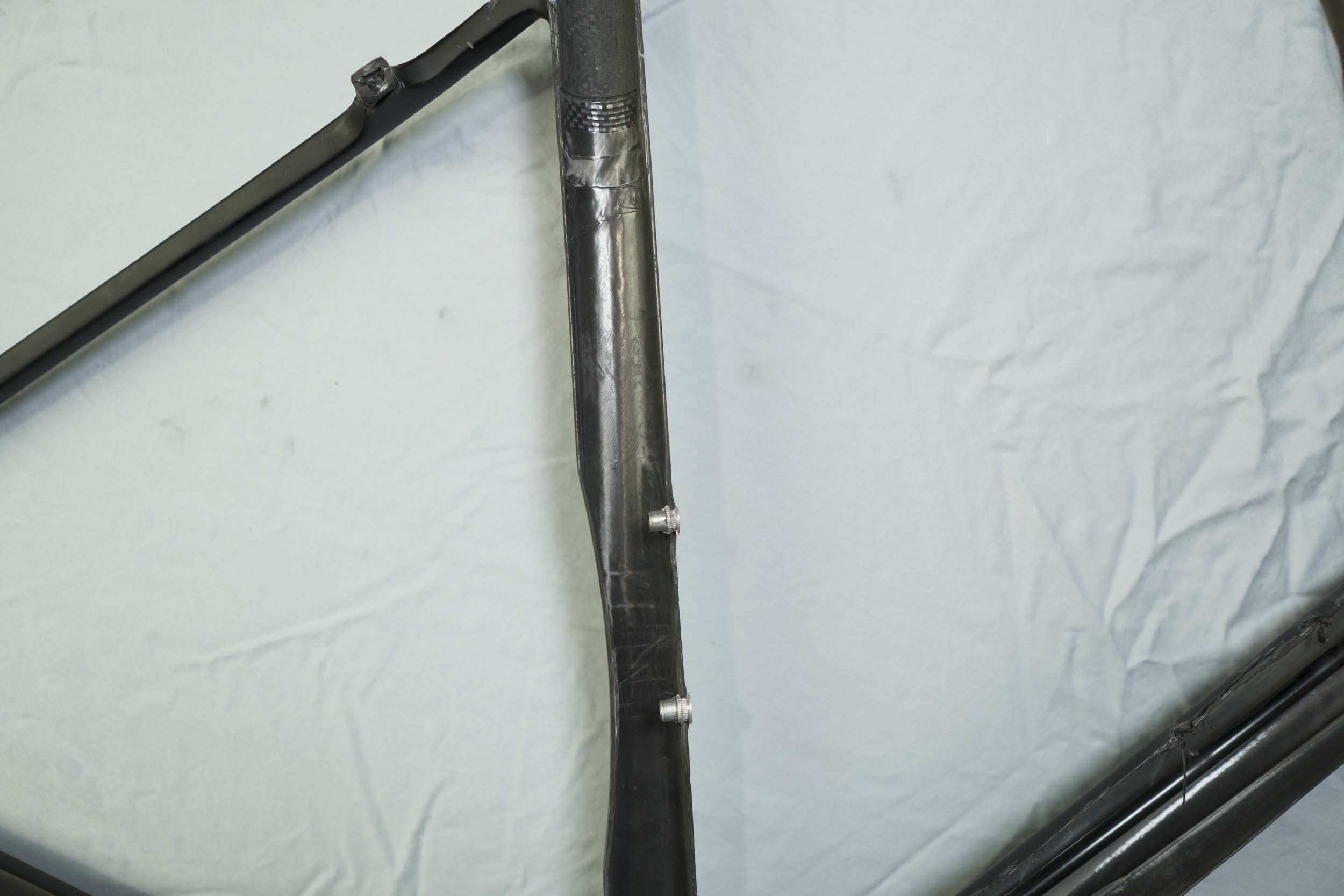

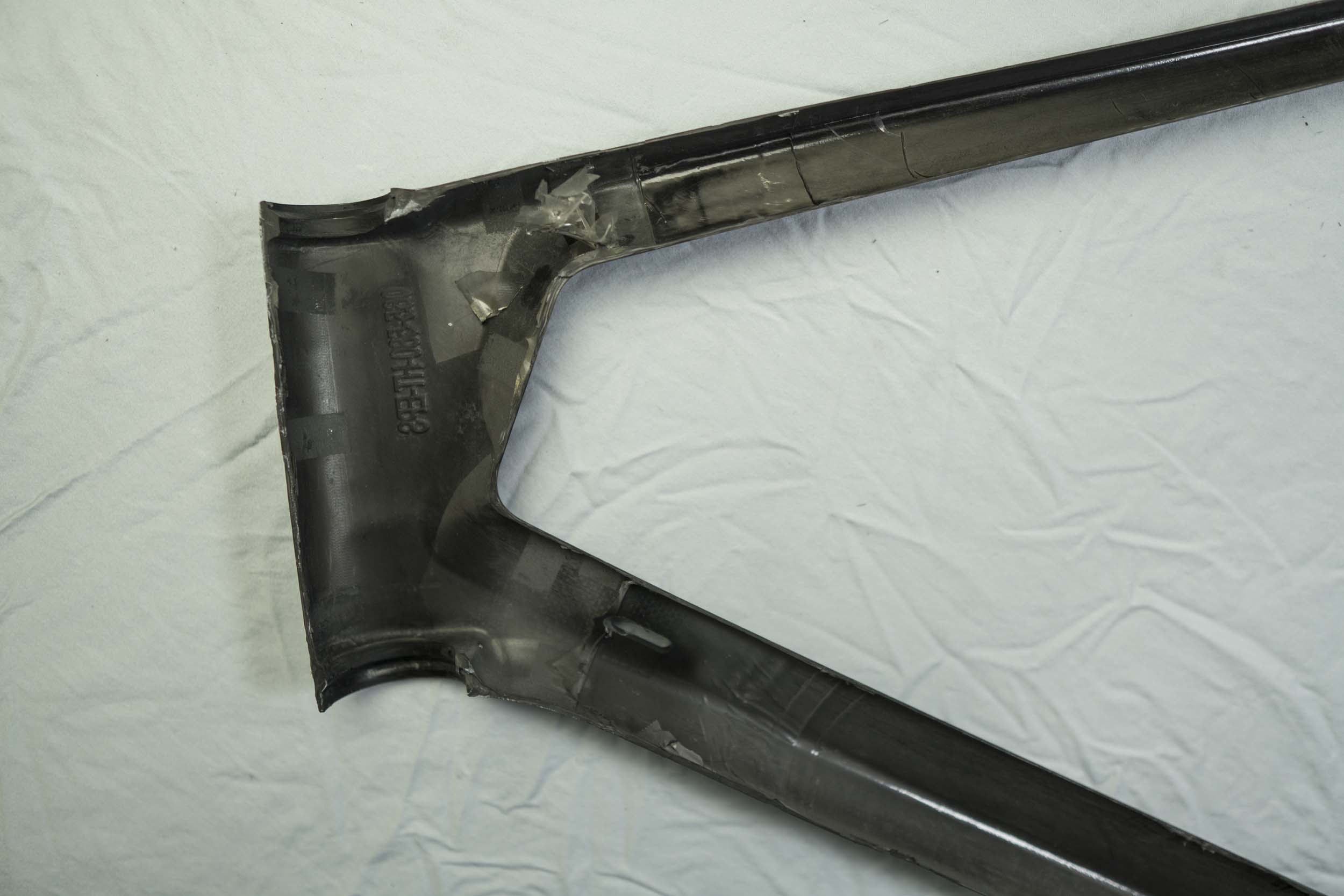

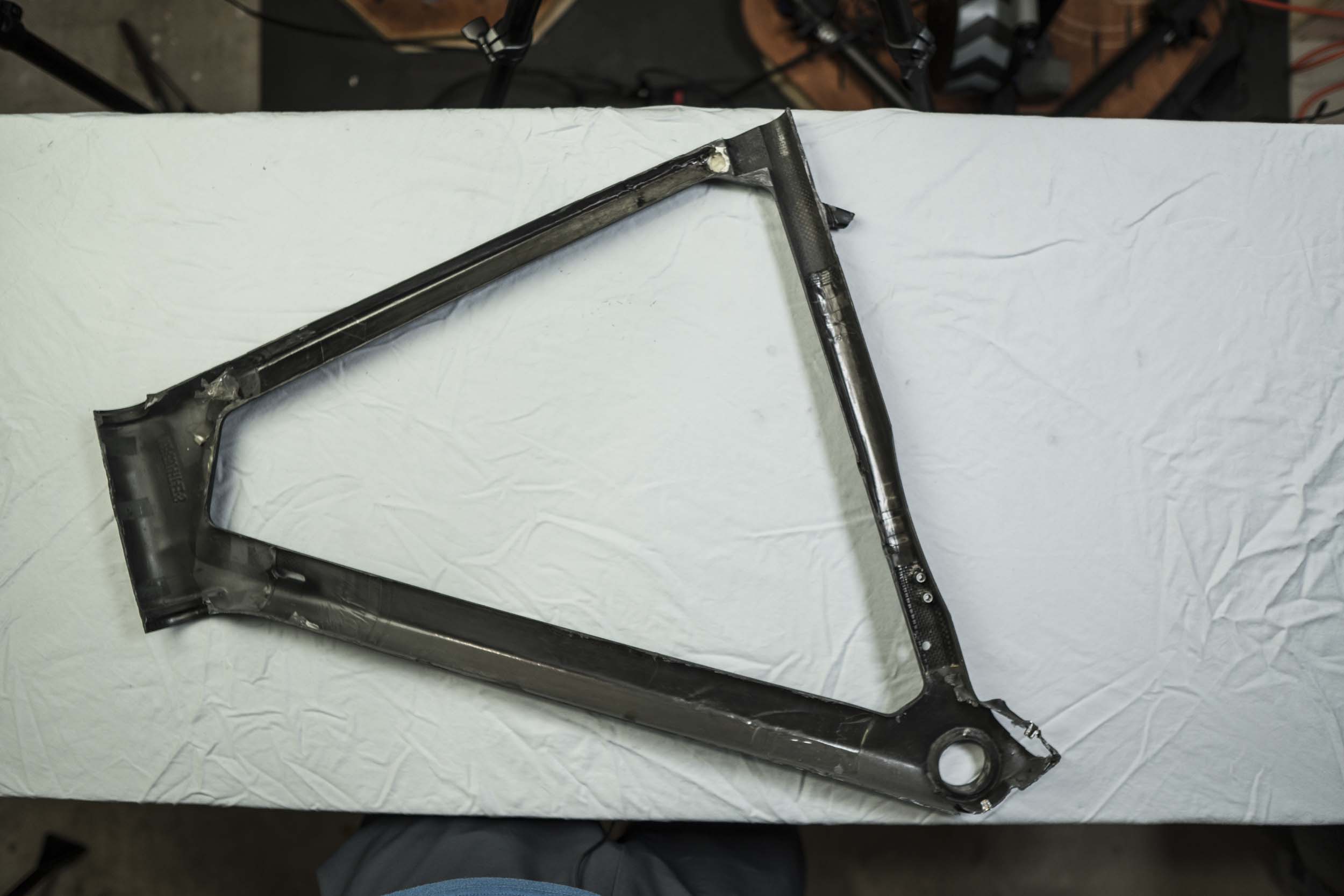

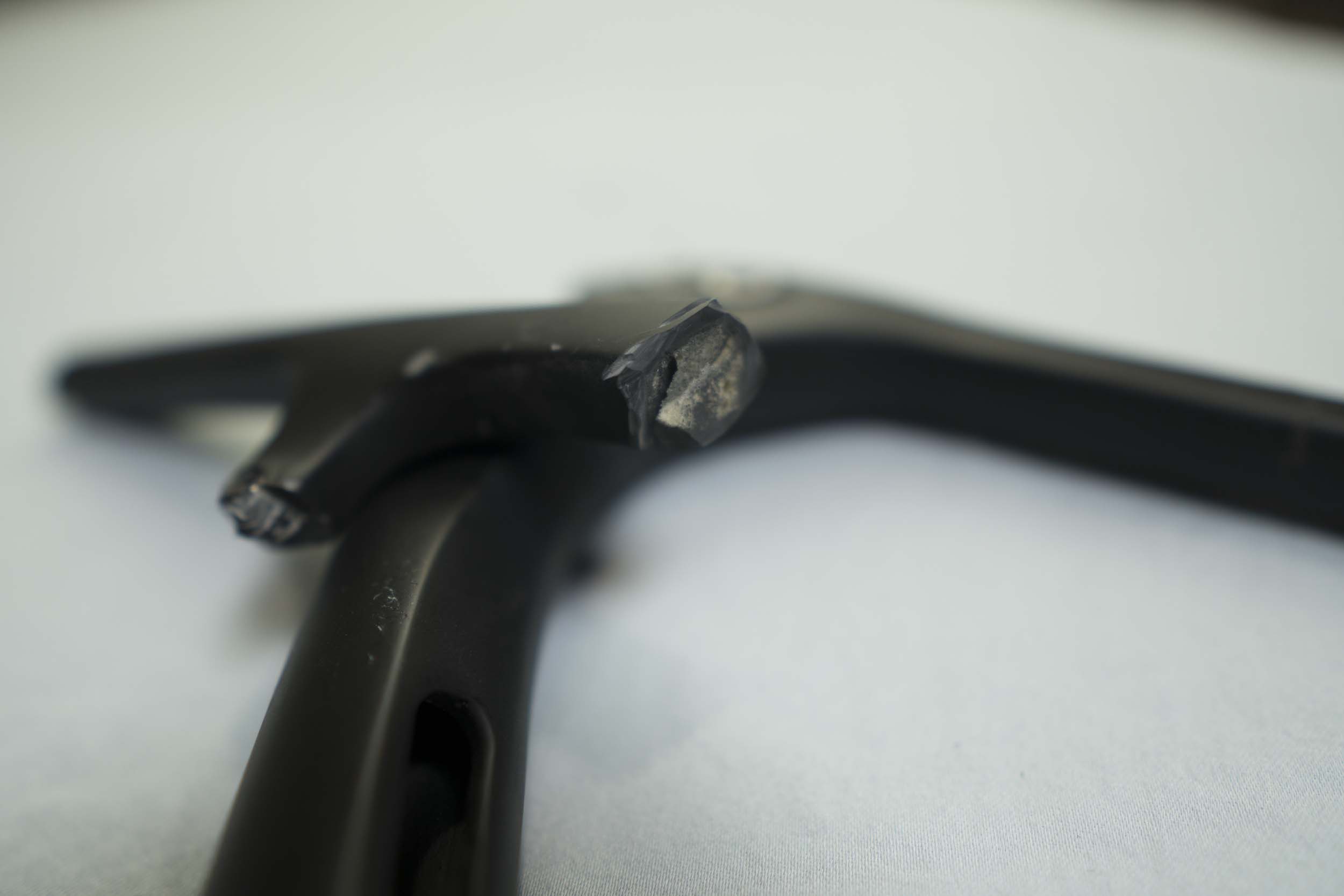

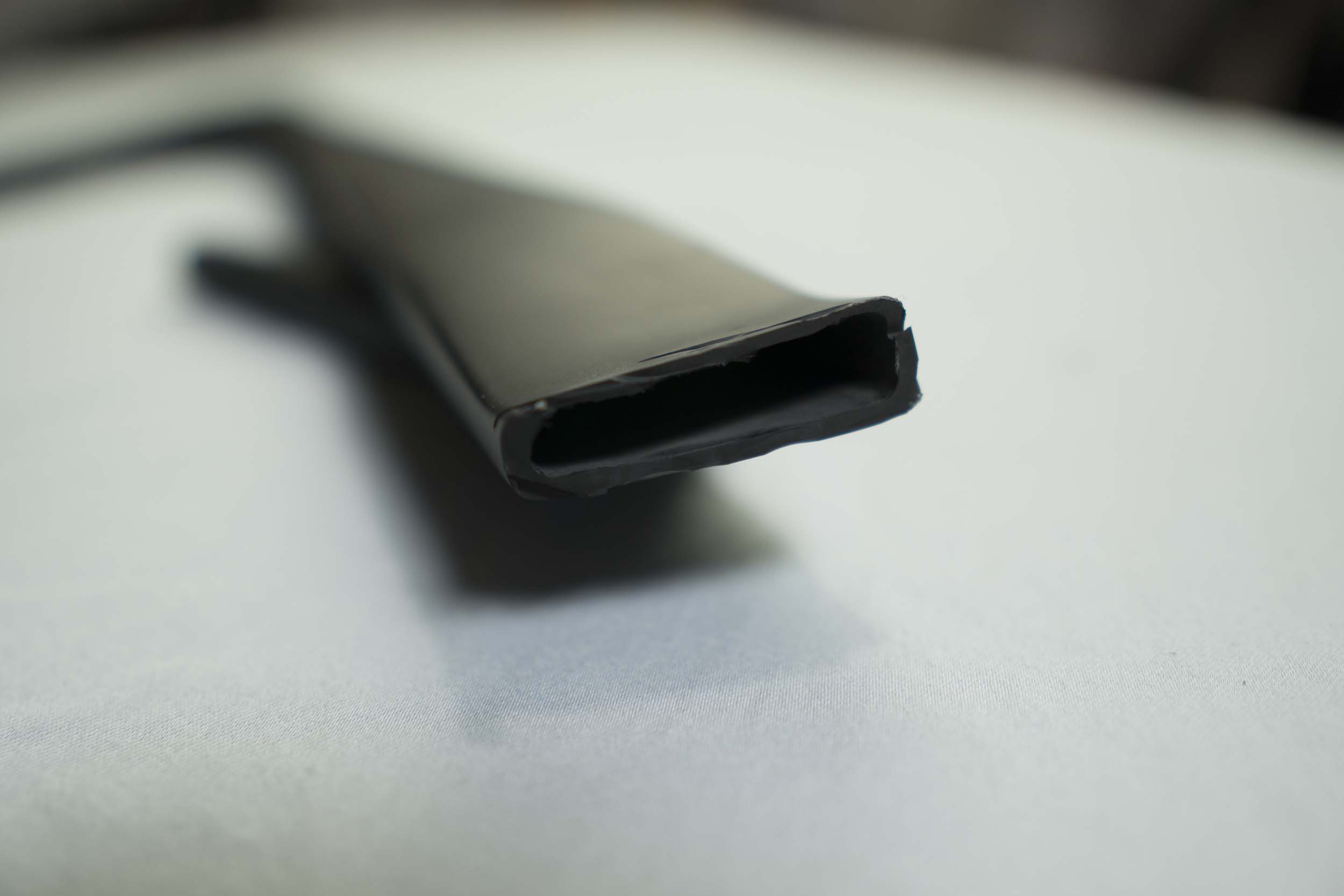

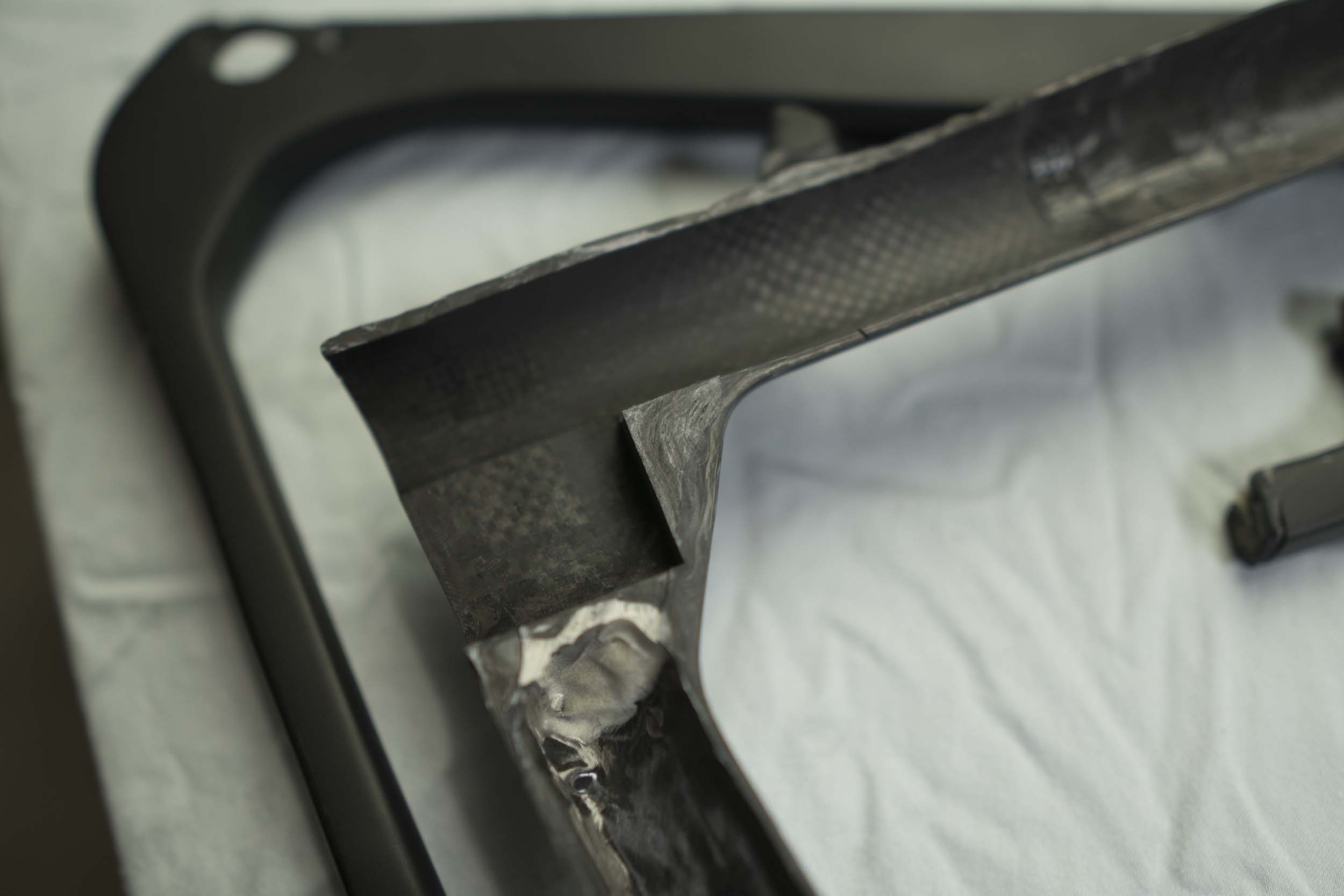

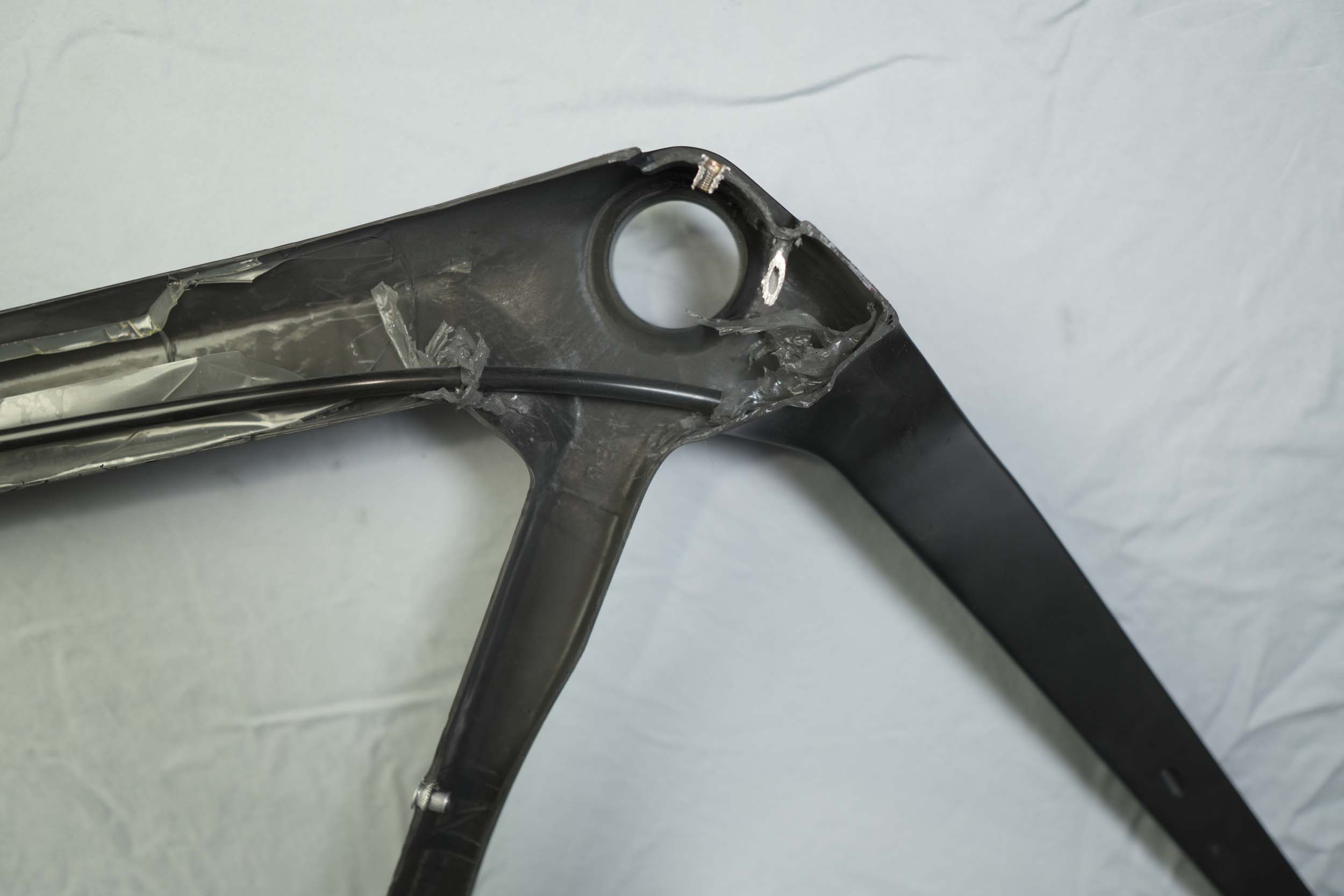

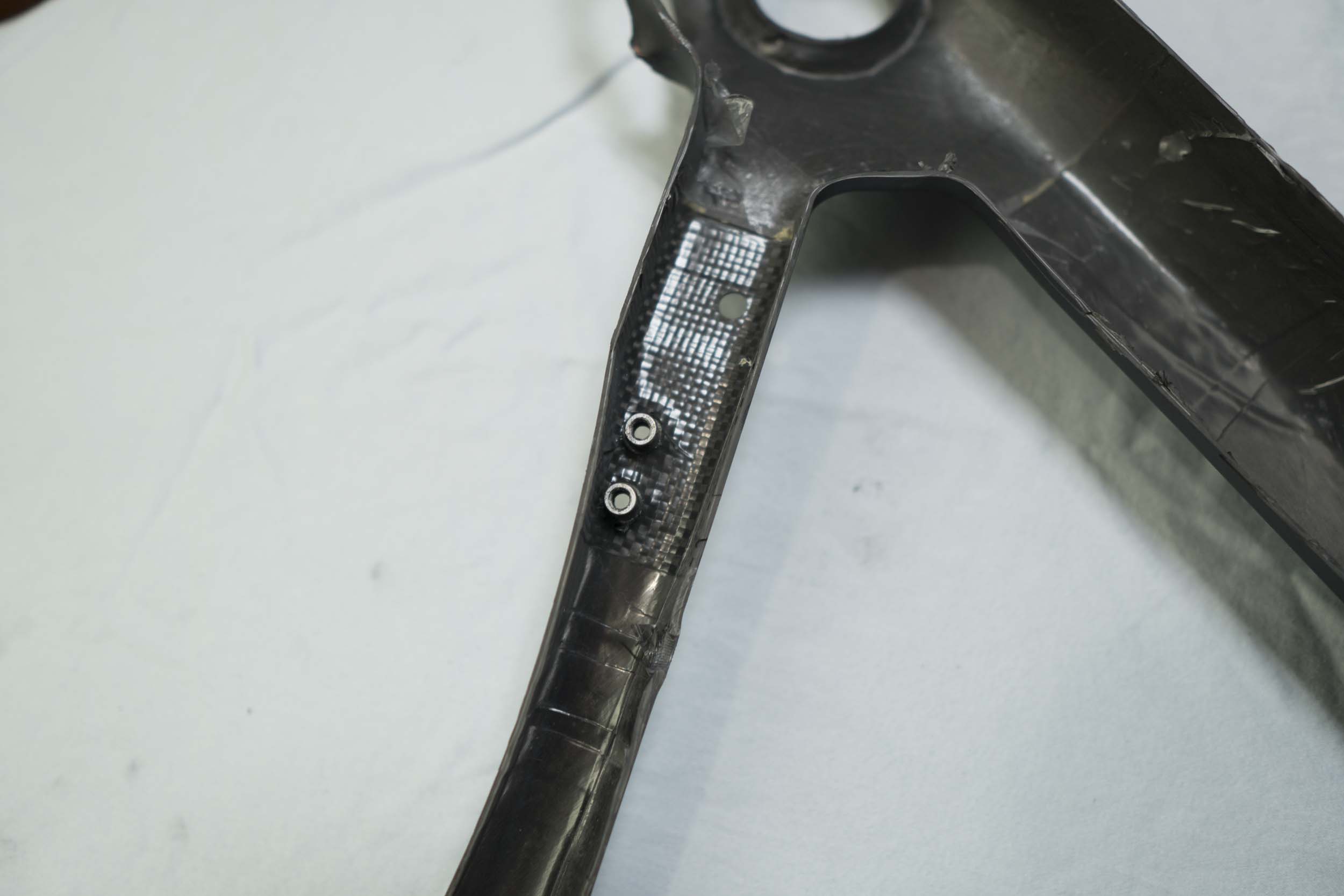

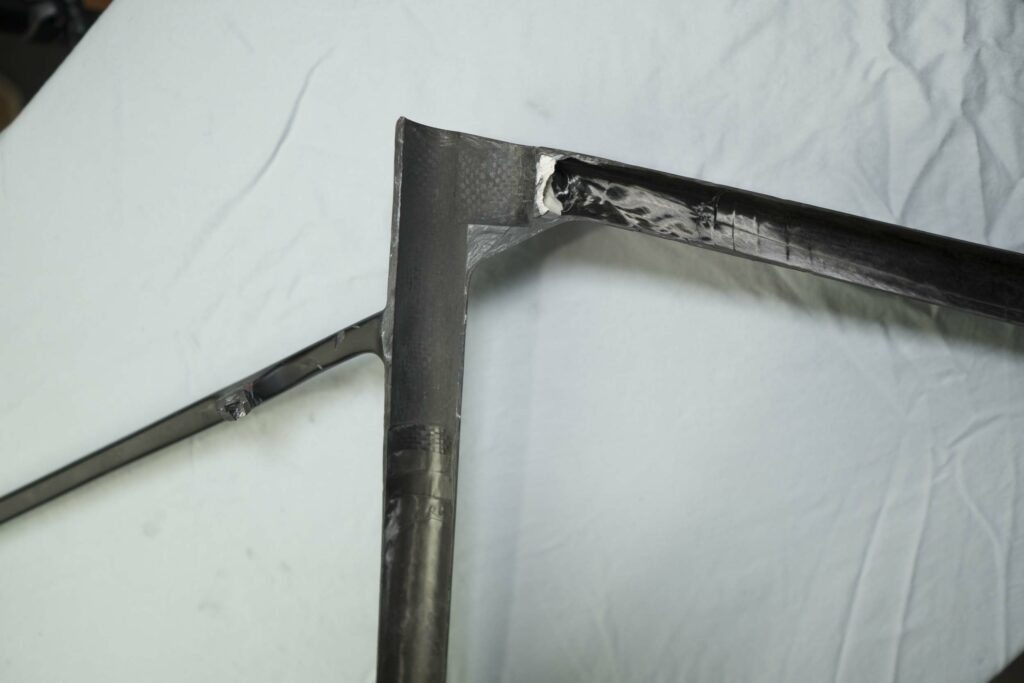

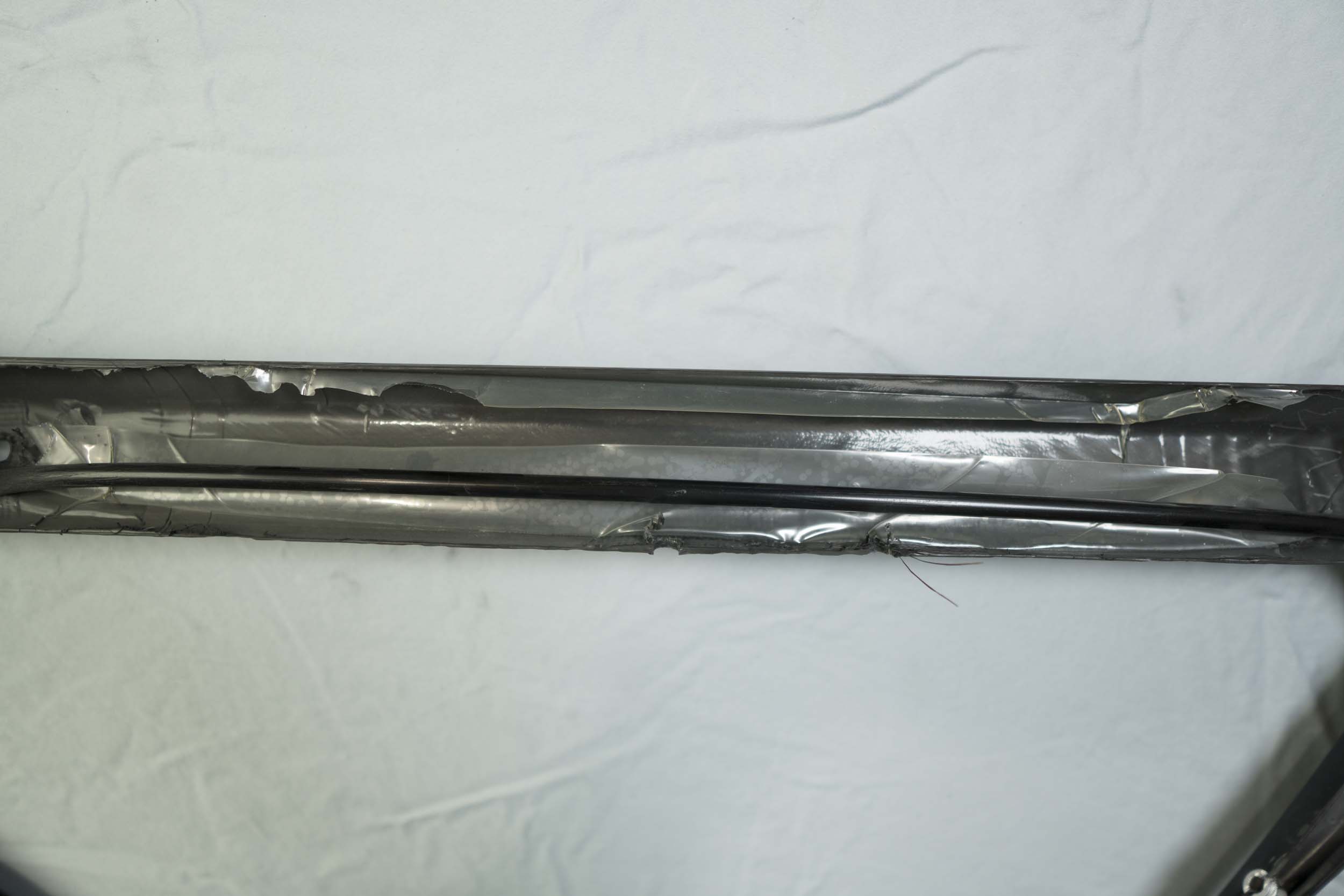

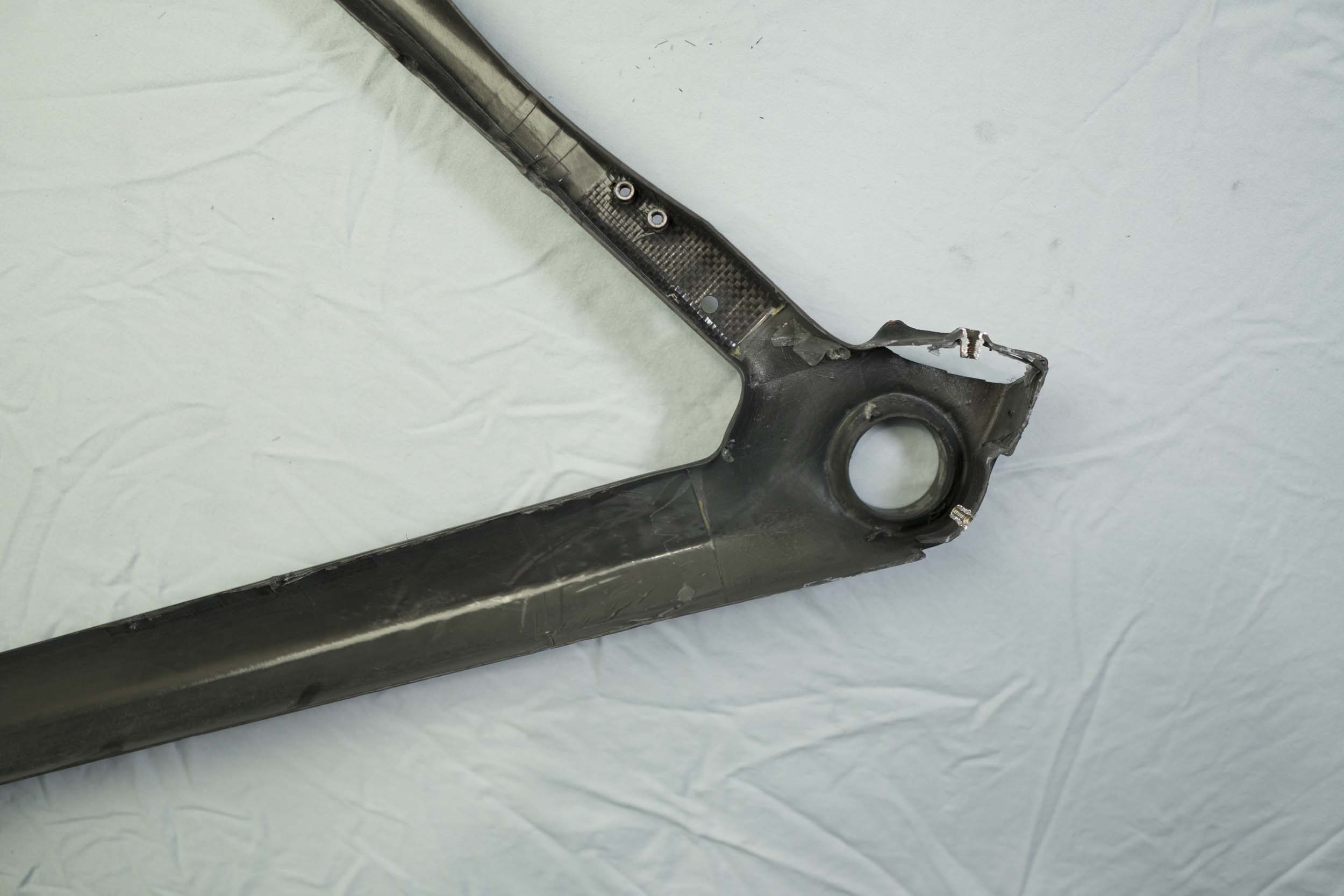

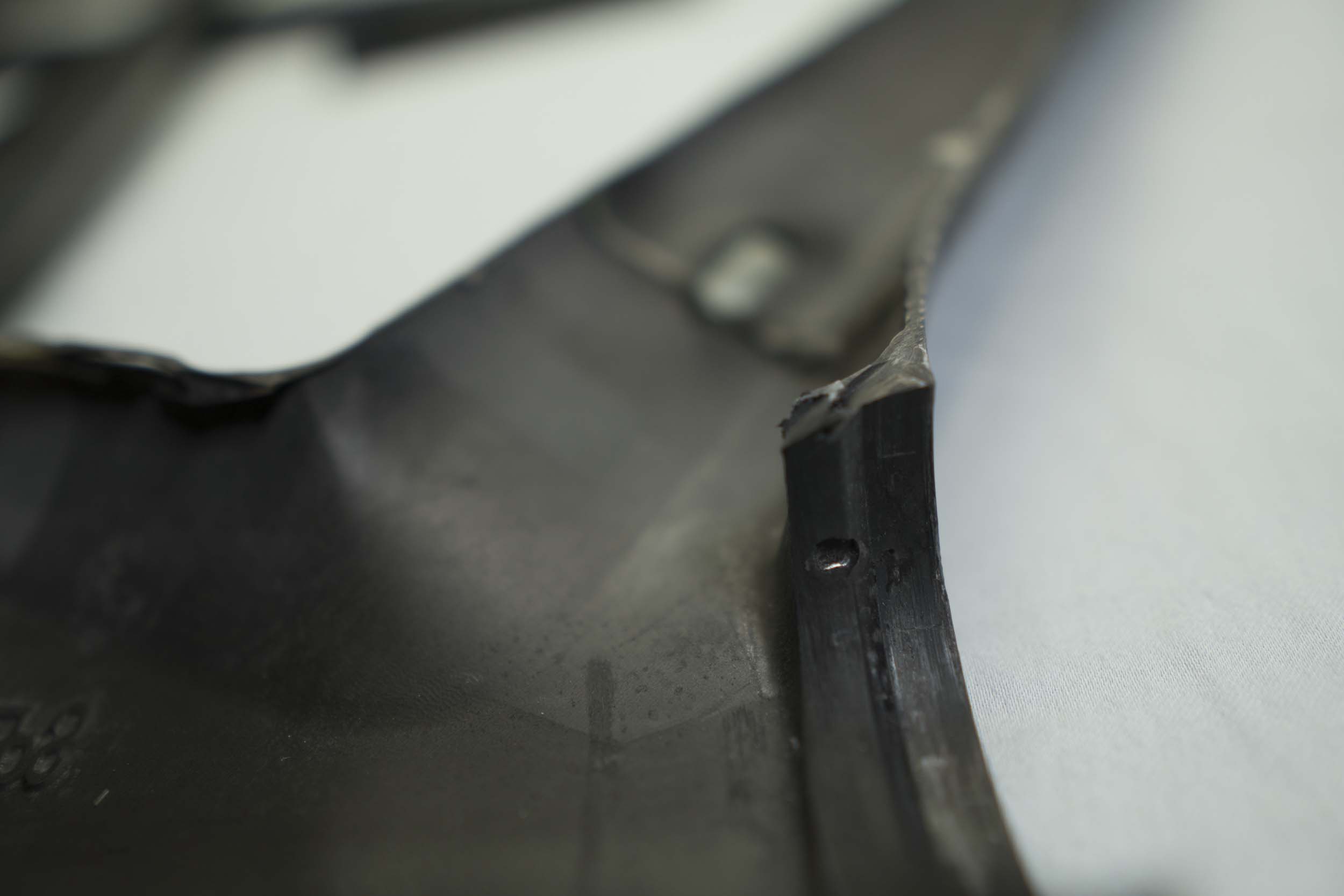

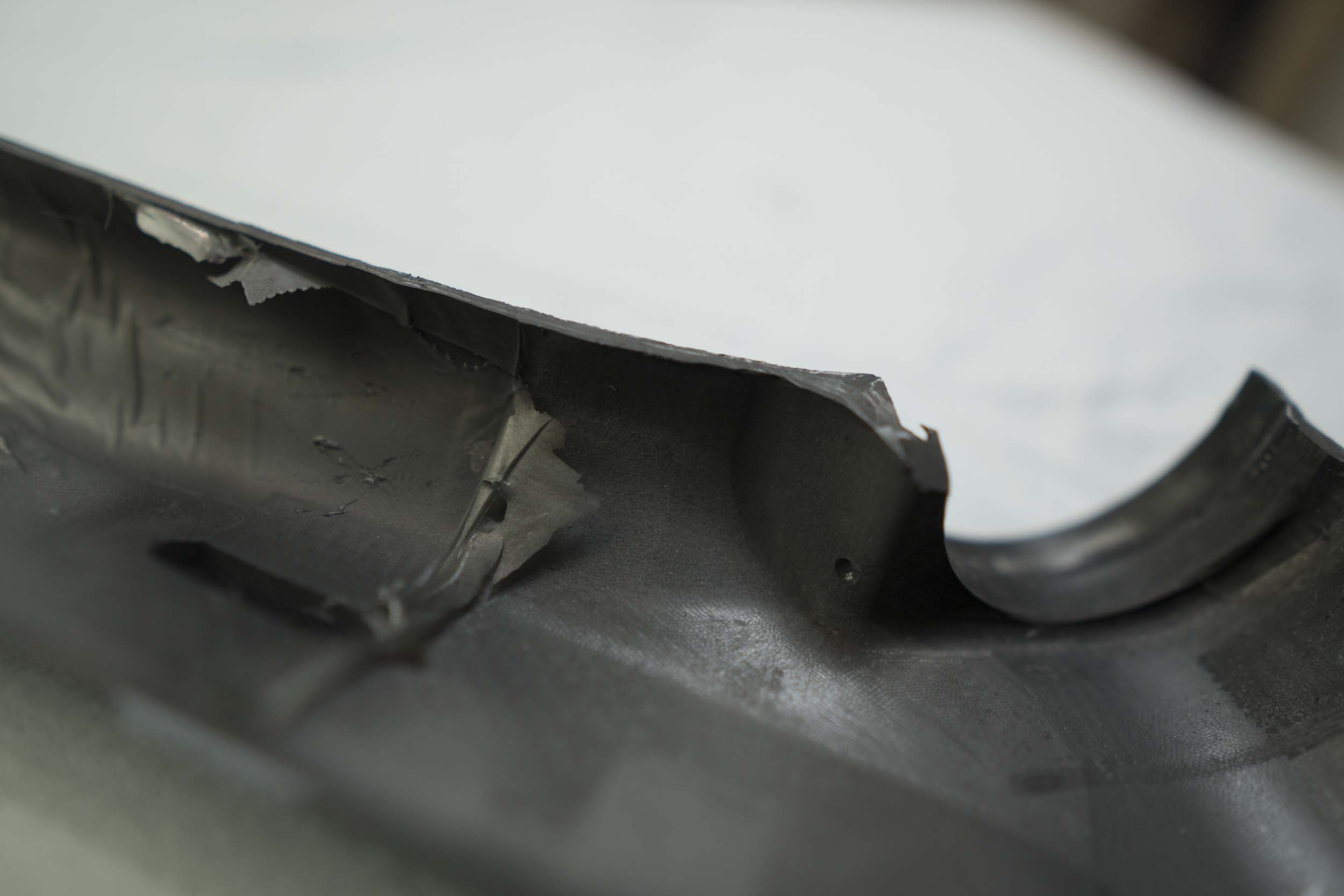

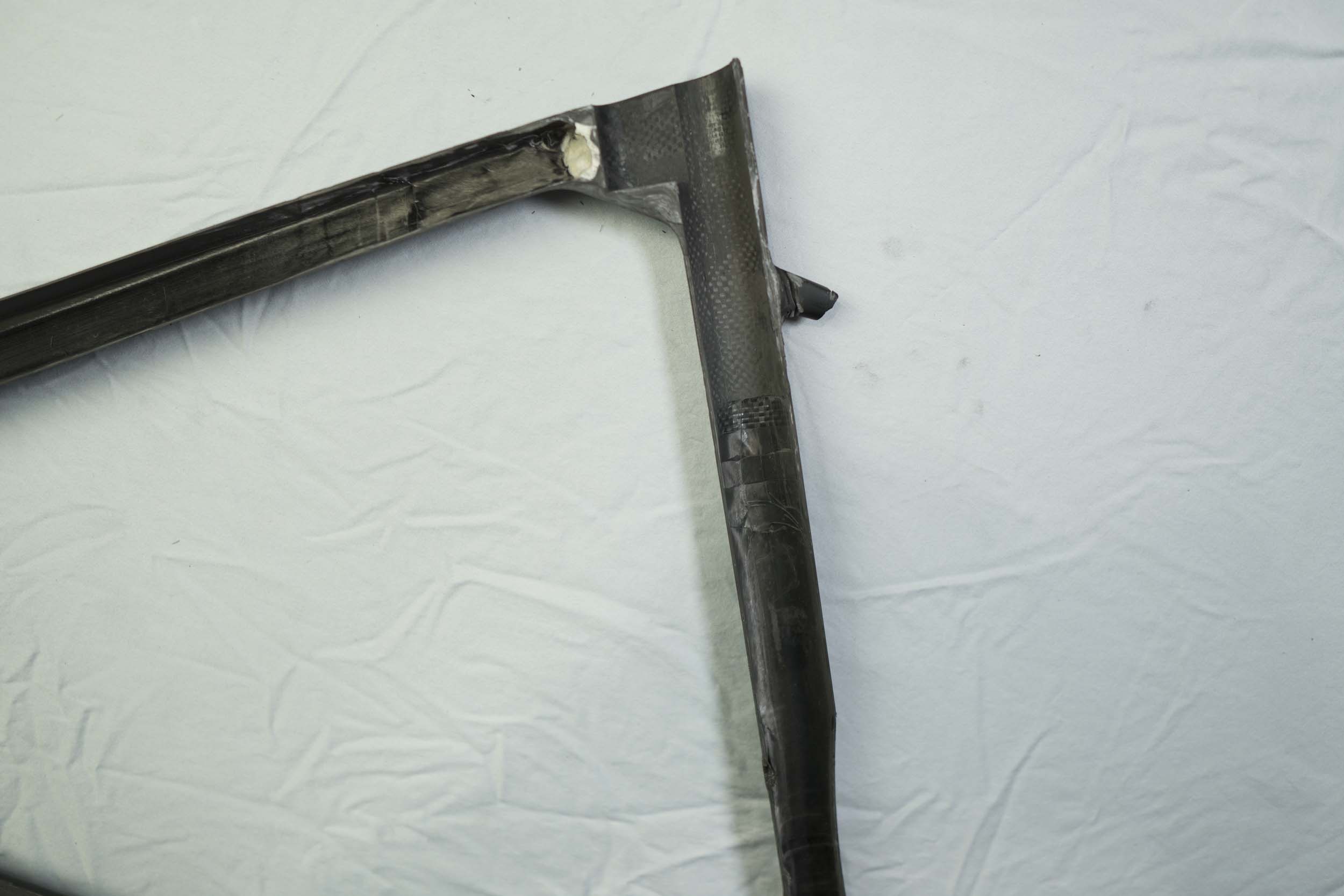

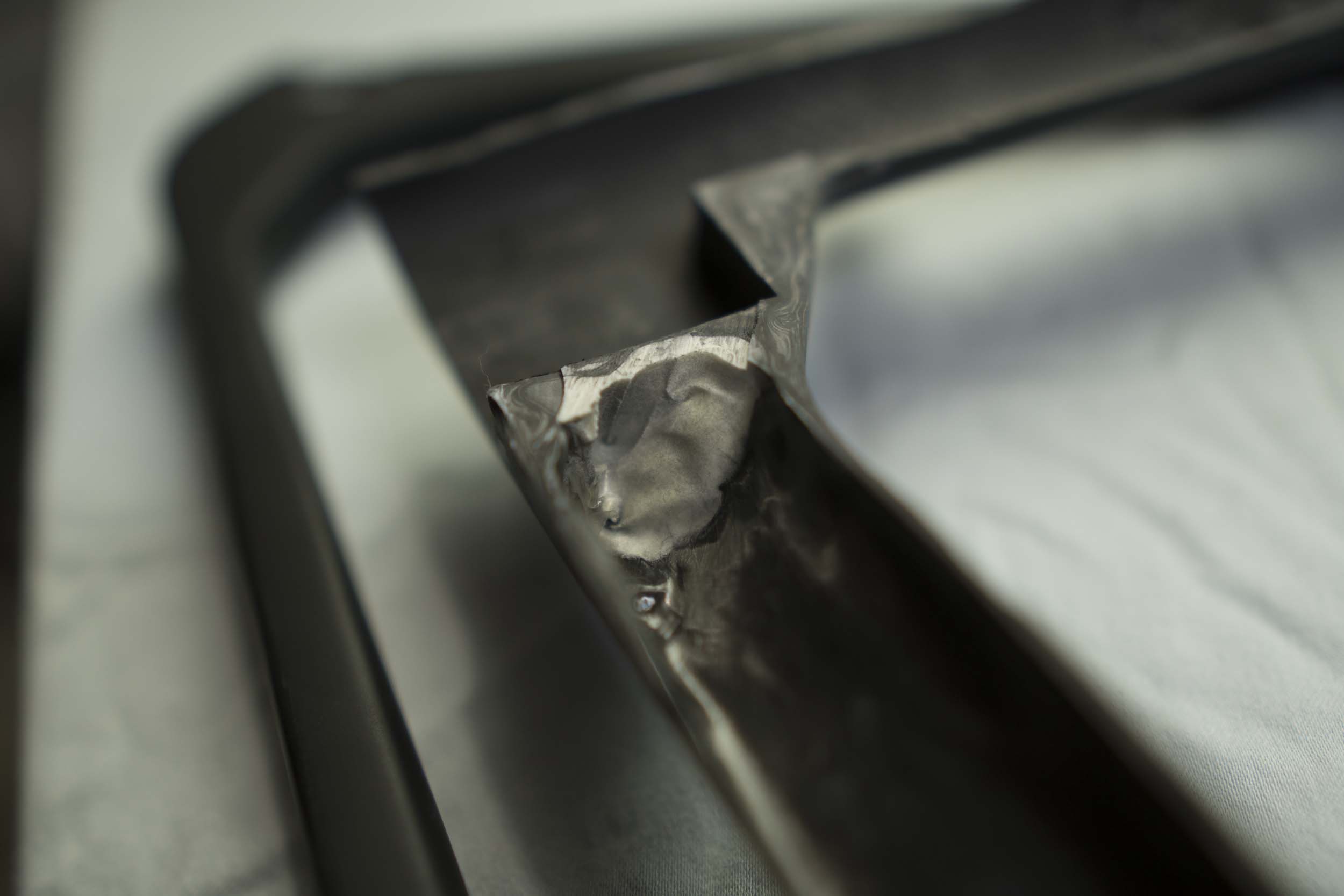

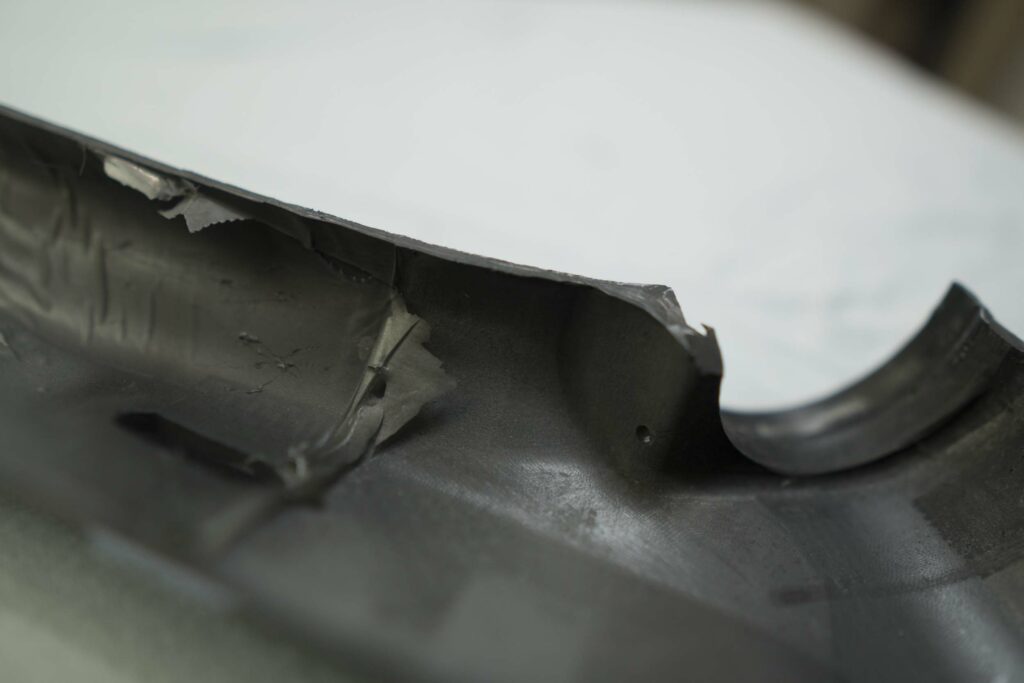

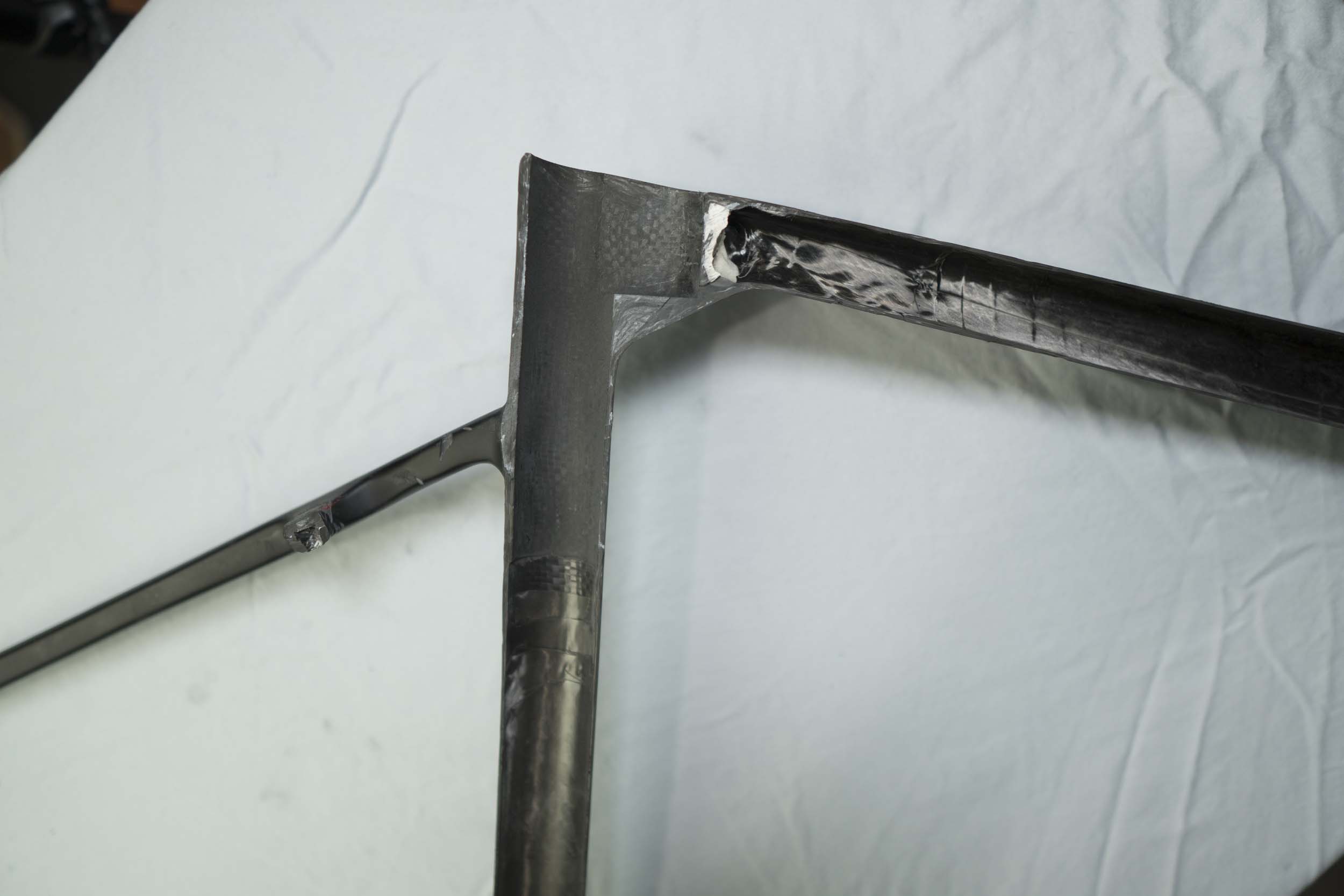

Photos Inside LightCarbon’s LCG-010-D Gravel Frame
